Plaster-In Large LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-PI-L |
| Width | 57.2mm (97.2mm incl flange) |
| Height | 18.8mm |
| Max LED Width | 47mm |
| Available Lengths | 1m, 2m |
| Colour Options | Silver |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) |
Includes Foam Insert At No Additional Cost
Plaster-In Large LED Profile – Aluminium, IP20 Rated

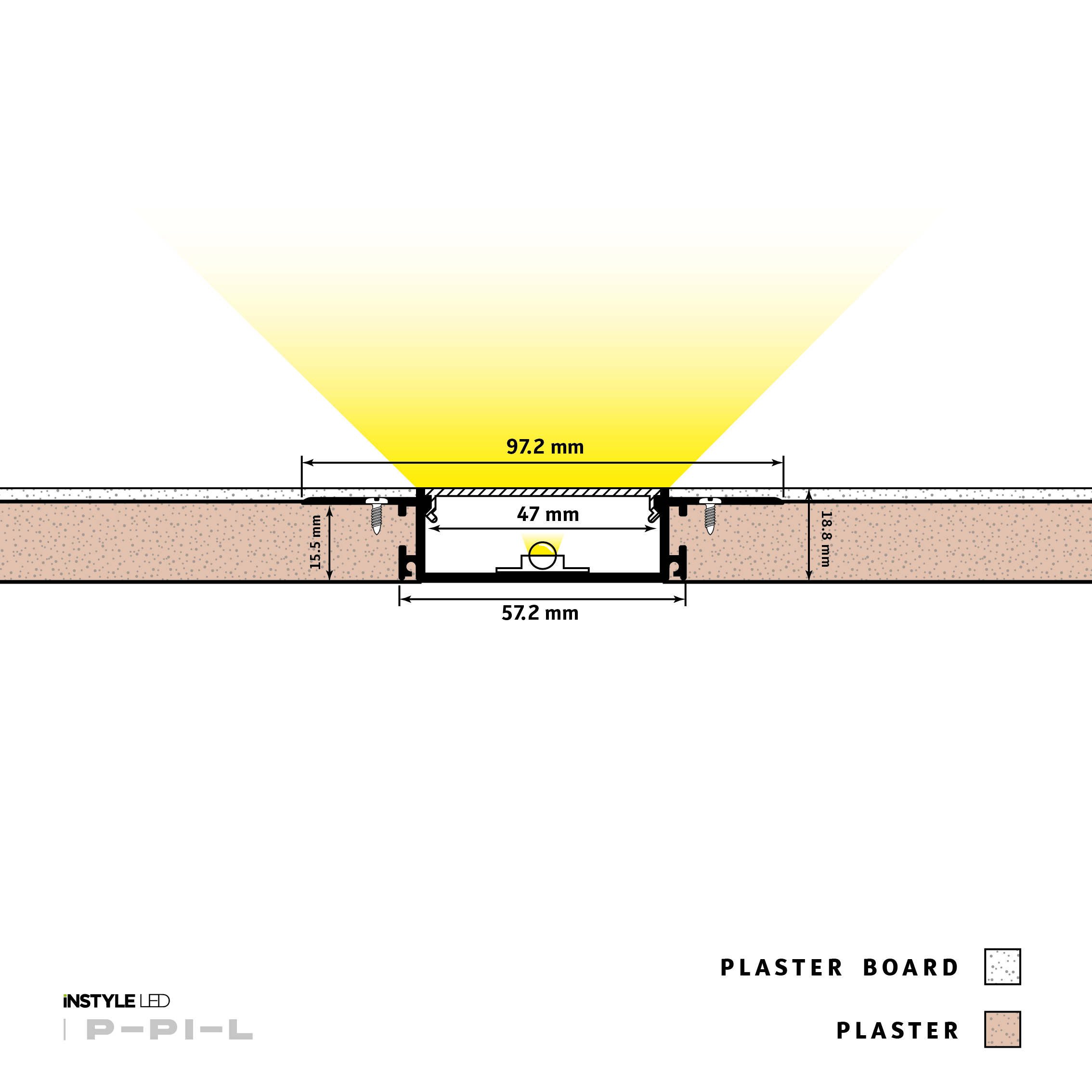

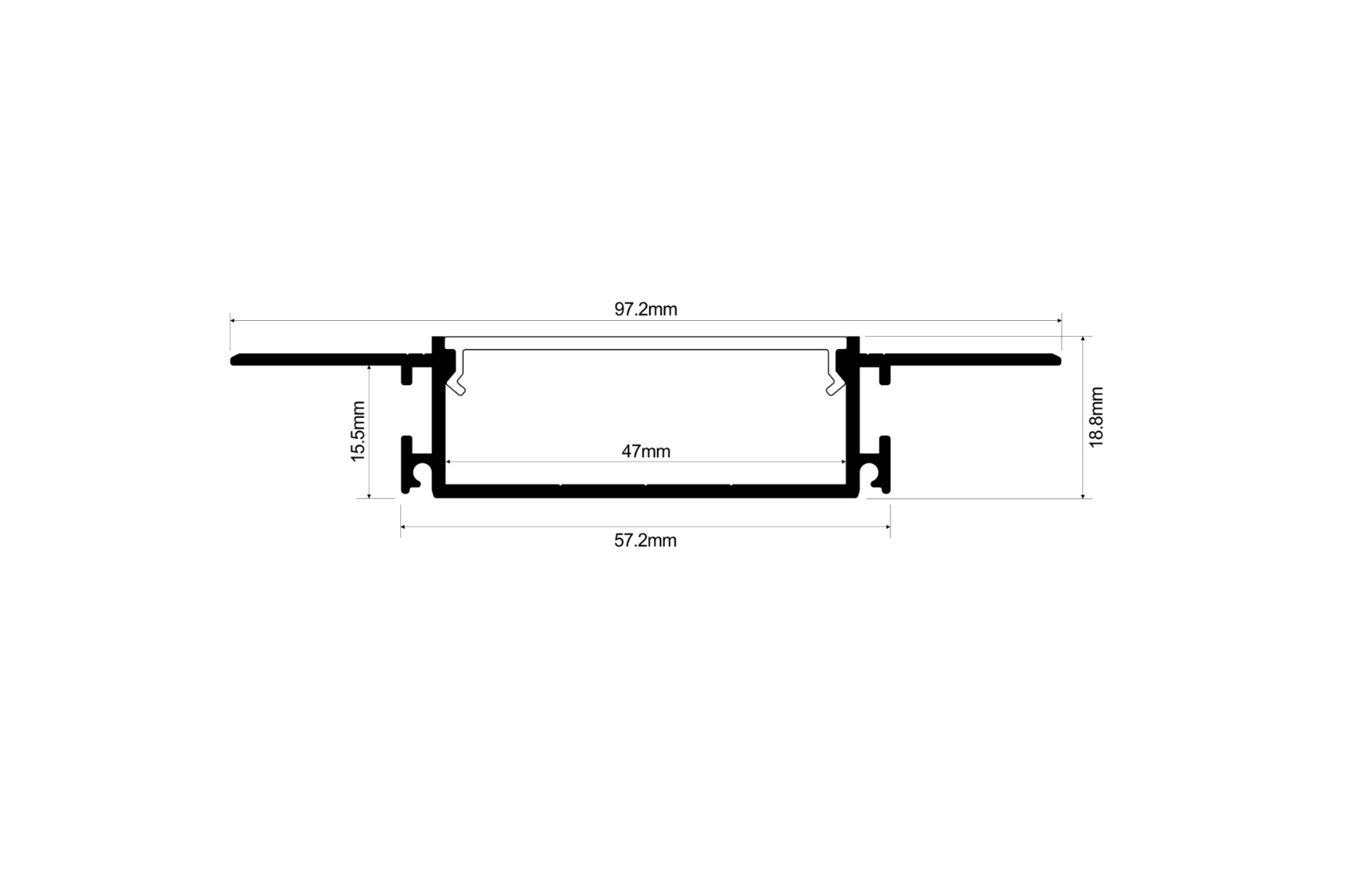

The INSTYLE LED Plaster-In Large LED profile is a robust aluminium housing designed for seamless recessed installations where high-output lighting is required. With a width of 57.2mm (97.2mm including flange) and a height of 18.8mm, it accommodates LED tape up to 47mm wide, making it ideal for powerful architectural and commercial lighting projects.
This profile allows LED strips to be integrated flush into plasterboard ceilings and walls, creating a modern, streamlined appearance with no visible fittings. Available in 1m and 2m lengths, it comes in a durable silver aluminium finish to suit contemporary interiors.
Each unit is supplied with a foam insert at no additional cost, ensuring the channel stays clear of plaster and debris during installation. The included opal (20% semi-diffused) lens cover provides smooth, glare-free illumination while reducing hotspots for a professional finish.
Rated IP20, the Plaster-In Large LED profile is designed for indoor use, offering a premium solution for large-scale recessed lighting installations.
- Includes Foam Insert at No Additional Cost
- Commercial Grade
- Colour: Silver
- Maximum LED strip width: 47mm
