RF & DMX 512 | LED Controller
Commercial Grade LED Controller
Full Specification
| Product Code | RC-RF-DMX |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 12-36V DC |
| Input Current | 0.1A Max |
| Signal | DMX512 + RF 2.4GHz |
| Dimming Range | 0 -100% |

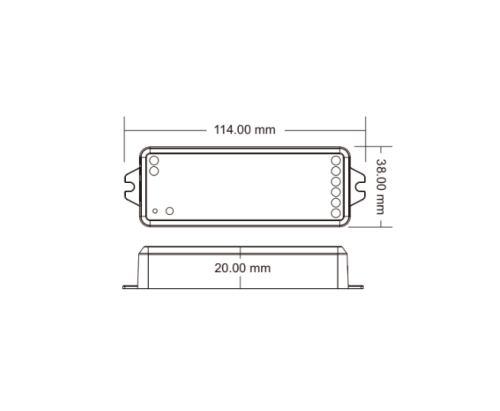

| Dimensions | L120 x W43 x H27mm |
| Weight | 0.055kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, RoHs, EMC, RED |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W / CT-DIM-4-B / CT-DIM-4-W / CT-RGBW-4-W / CT-RGBW-4-B CT-WALL-1-DIM-BAT / CT-WALL-4-CCT-BAT / CT-WALL-4-DIM-BAT / CT-WALL-4-RGBW-BAT RM-CCT-1 / RM-CCT-8 / RM-DIM-1 / RM-DIM-8 / RM-RGBW-1 / RM-RGBW-8 |

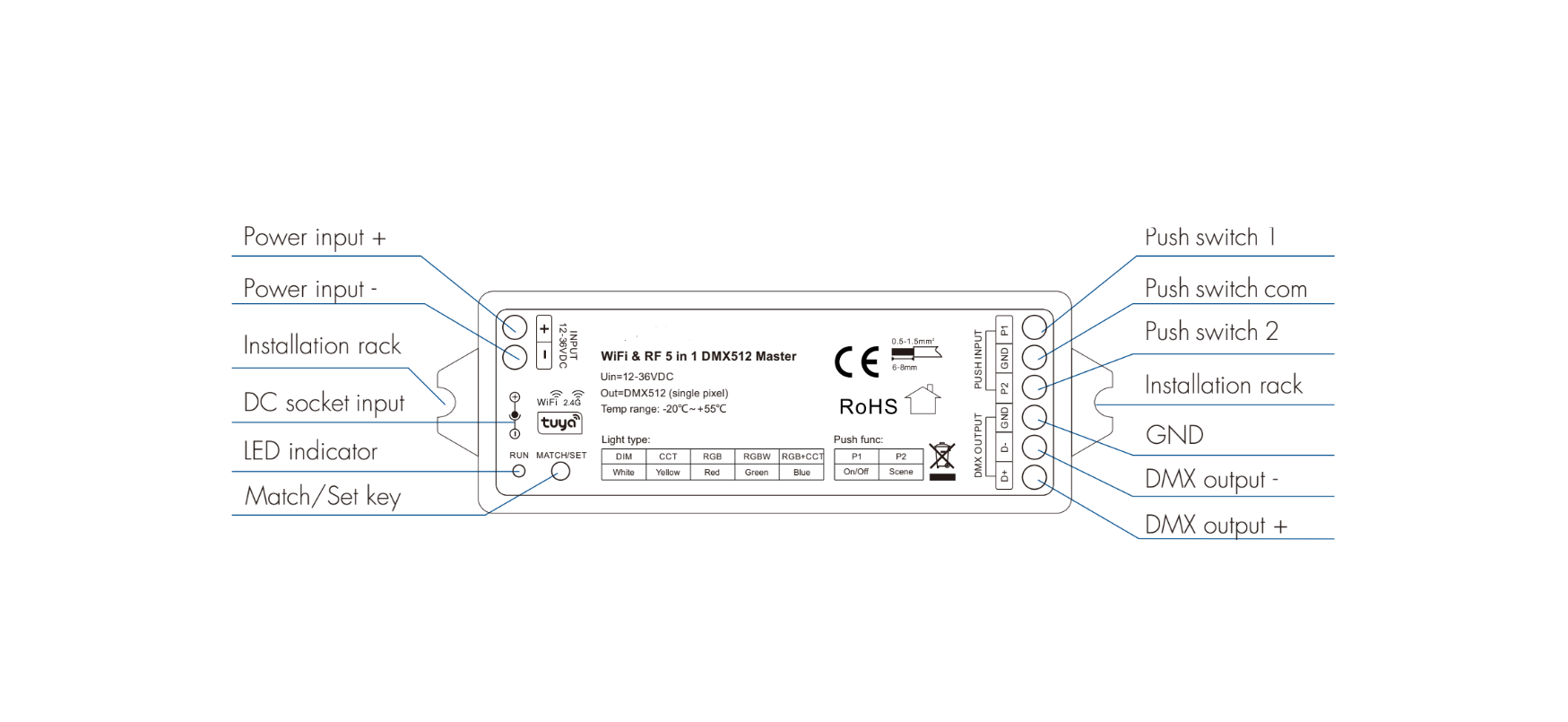

The RC-RF-DMX is a versatile WiFi and RF 5-in-1 DMX512 master controller, designed for smart lighting control across DIM, CCT, RGB, RGBW, and RGB+CCT setups. With Tuya Smart app integration, it supports on/off, brightness, color, and color temperature adjustment, plus advanced features like timers, schedules, music sync, and scene recall.

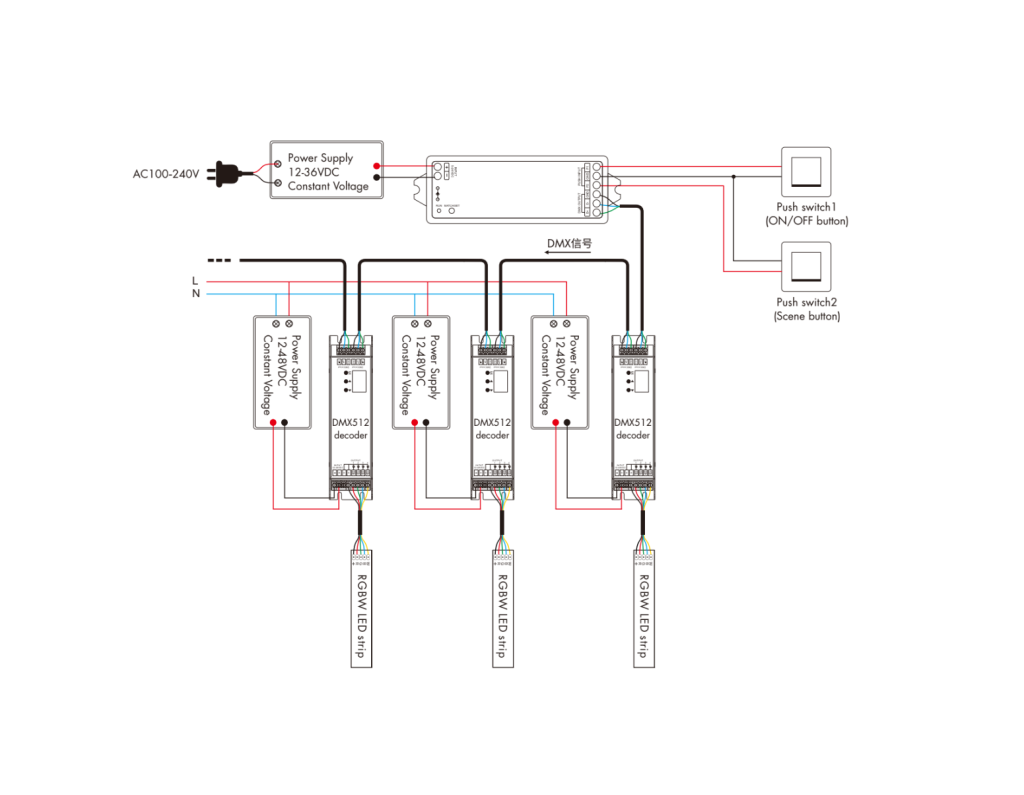

This unit also works with Amazon Alexa, Google Assistant, and other voice assistants for hands-free control. It can connect to RF remotes and push switches for flexible operation, and functions as a WiFi/RF-to-DMX512 converter, enabling synchronized control of multiple decoders across long distances. Compact, powerful, and easy to set up, it’s perfect for smart homes, commercial spaces, and architectural lighting.
Key Features
Signal Amplification – Strengthens DMX512/RS-485 signals for long-distance transmission
Dual Outputs – One input, two independent DMX outputs for easy expansion
Photoelectric Isolation – Prevents interference and protects equipment from voltage issues
Reliable Operation – Ensures smooth communication across multiple DMX devices
Wide Input Range – Works with 12–48VDC constant voltage supplies
Compact & Durable – Slim design (178×50×38mm), IP20 rated, 5-year warranty
Safe & Certified – CE, EMC, and RED compliant with reverse polarity protection
Applications
Stage & Event Lighting – Extend DMX signal across large event venues.
Architectural Lighting – Reliable signal distribution for building façades and outdoor installations.
Commercial Spaces – Shopping malls, hotels, and exhibition centers with large DMX networks.
Theme Parks & Attractions – Expand DMX signal to multiple zones without loss.
Broadcast & Studio Lighting – Maintain stable DMX signals for critical production environments.
