RGB/W | SPI | Pixel | LED Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | PIXEL-WALL-RGBW |
| Protocol | Pixel (SPI) |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

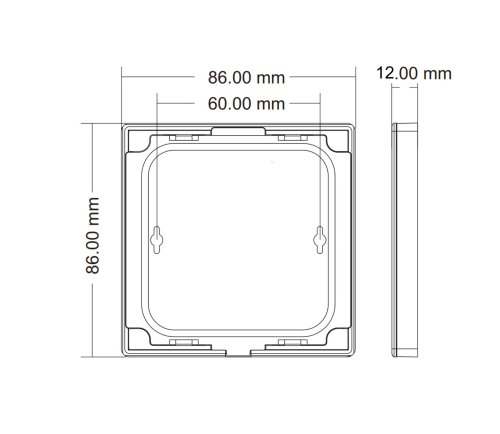

| Dimensions | L86 x W86 x H12mm |
| Weight | 0.064kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |

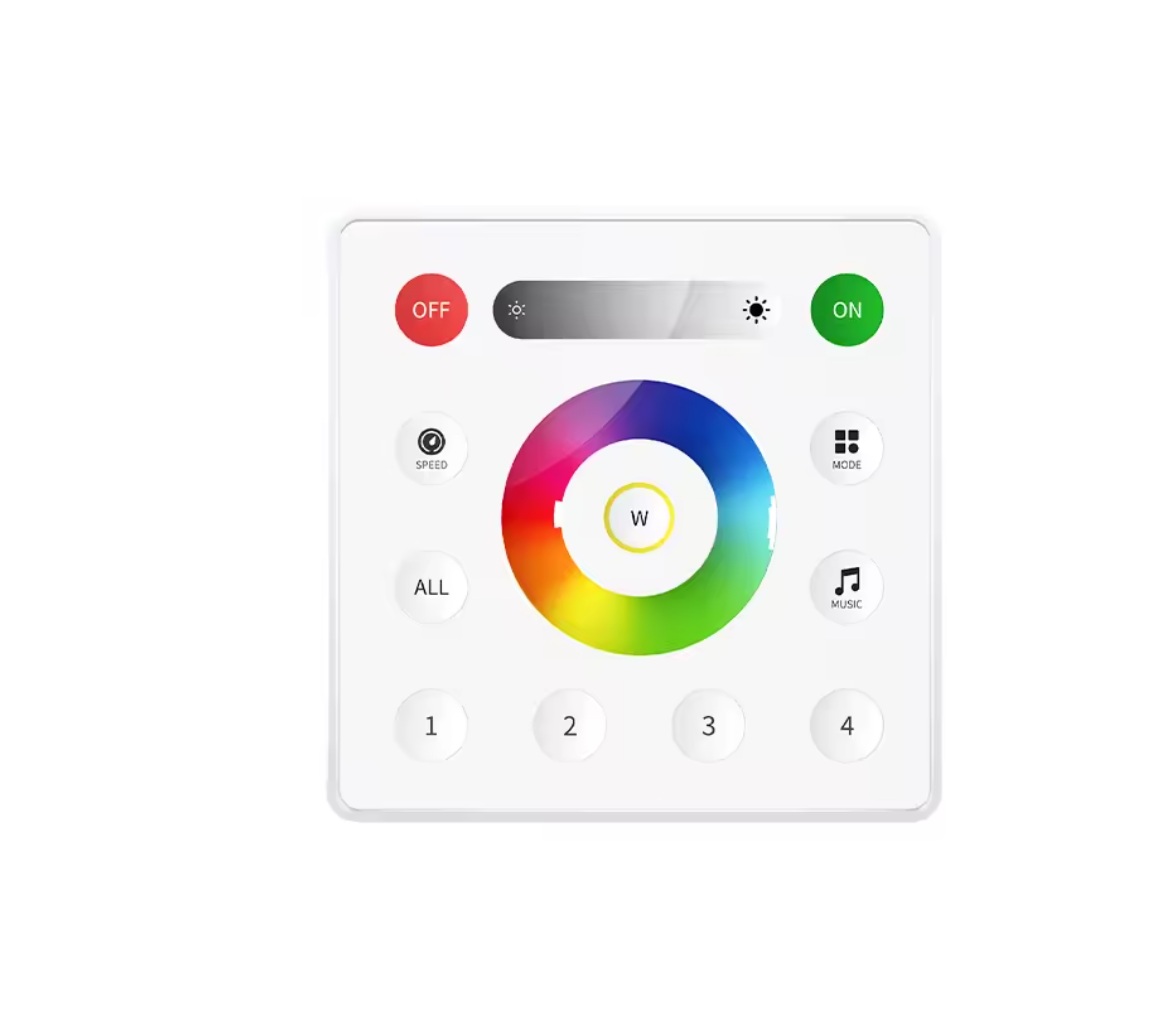

RGB/W SPI Pixel LED wall plate controller with 4-zone control
The PIXEL-WALL-RGBW is a sleek RF touch panel Wall control designed for multi-zone pixel and LED lighting systems. With support for 1–4 zones, it allows users to control brightness, colour temperature, and RGB/RGBW effects with precision.

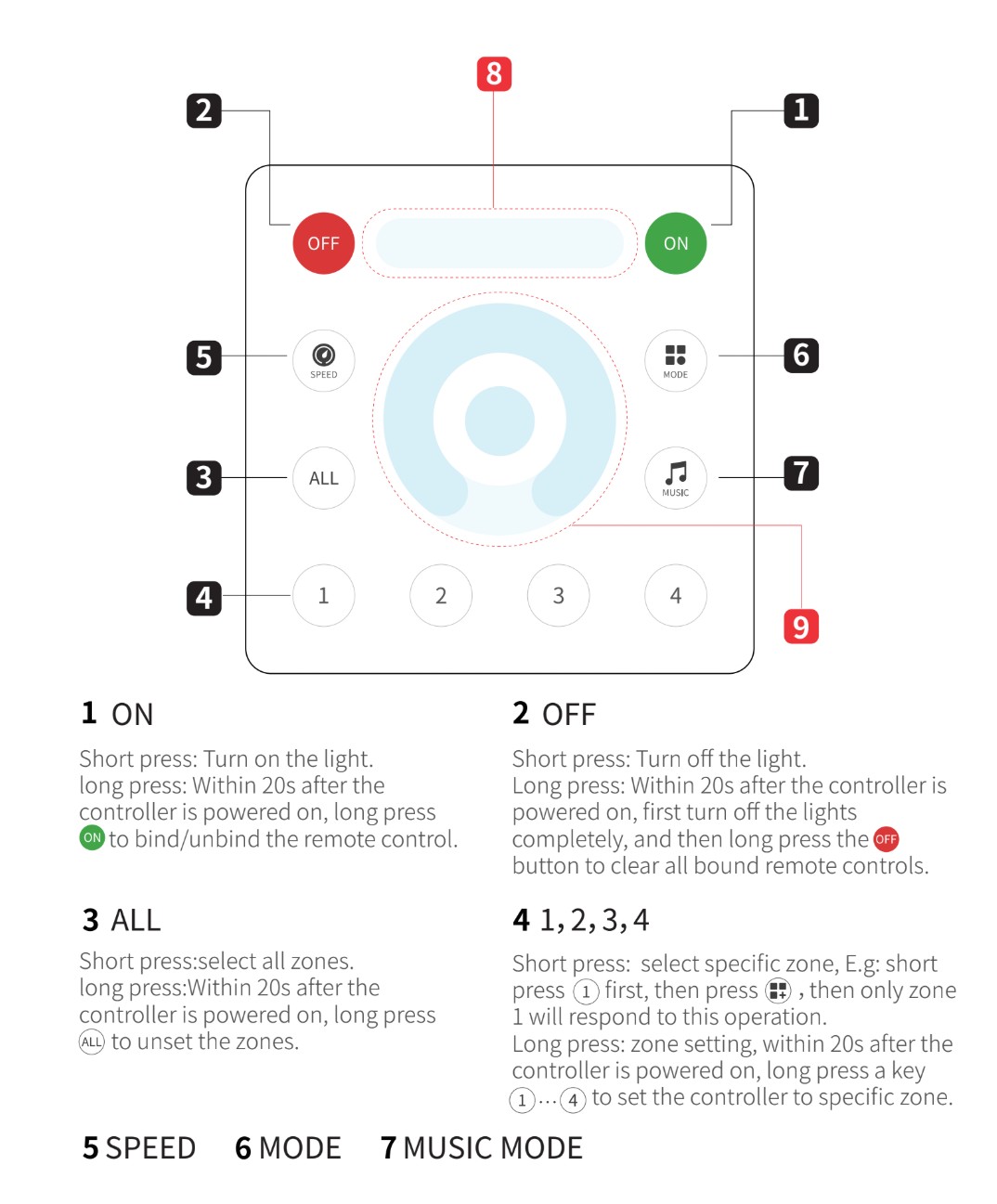

The intuitive touch rings provide smooth adjustment of brightness, color hue, and white temperature, while the zone buttons let you manage areas independently or all at once. Additional features include music mode, 1–100% dimming, and easy remote pairing/unpairing. Designed for modern interiors, the PIXEL-WALL combines style, convenience, and advanced wireless control.
Key Features
Multi-Zone Control – Supports up to 4 independent or grouped zones
Touch Rings – Adjust brightness, colour hue, and white temperature with ease
Wide Compatibility – Works with matching RF controllers (PIXEL-CONTROL)
Music Mode – Sync lighting with sound for dynamic effects
Smooth Dimming – 1–100% brightness adjustment
User-Friendly Setup – Easy pairing/unpairing within 20s of power-up
Stylish Design – Wall-mounted touch panel for modern interiors
Reliable Operation – 2.4GHz RF signal with stable, responsive control
Applications
Smart Homes – Centralised, stylish wall control of multiple LED zones.
Commercial Interiors – Offices, hotels, and restaurants needing flexible zone lighting.
Entertainment Spaces – Clubs, bars, and lounges with dynamic lighting zones.
Architectural Projects – Independent control of RGB/RGBW or CCT lighting across different areas.
Events & Exhibitions – Easy wireless control of multiple lighting zones.
