Single Colour | SPI | Pixel | LED Remote Controller
Commercial Grade LED Remote Controller
Full Specification
| Product Code | PIXEL-RM-DIM |
| Protocol | Pixel (SPI) |
| Compatible LED | White & Single Colour |
| Product Type | Remote Control |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |
| Dimensions | L56 x W78 x H20mm |
| Weight | 0.040kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
CCT, Pixel (SPI) LED Remote Controller
The PIXEL-RM-DIM is a modern RF touch panel remote designed for precise control of single-colour LED lighting across up to 4 zones. Its intuitive touch brightness ring allows smooth 1–100% dimming, while zone buttons provide independent or grouped control for maximum flexibility.
Featuring easy pairing/unpairing, stylish wall-mount design, and reliable 2.4GHz RF communication, the perfect solution for smart, centralised control of constant voltage LED strip lighting in residential, commercial, and architectural projects.

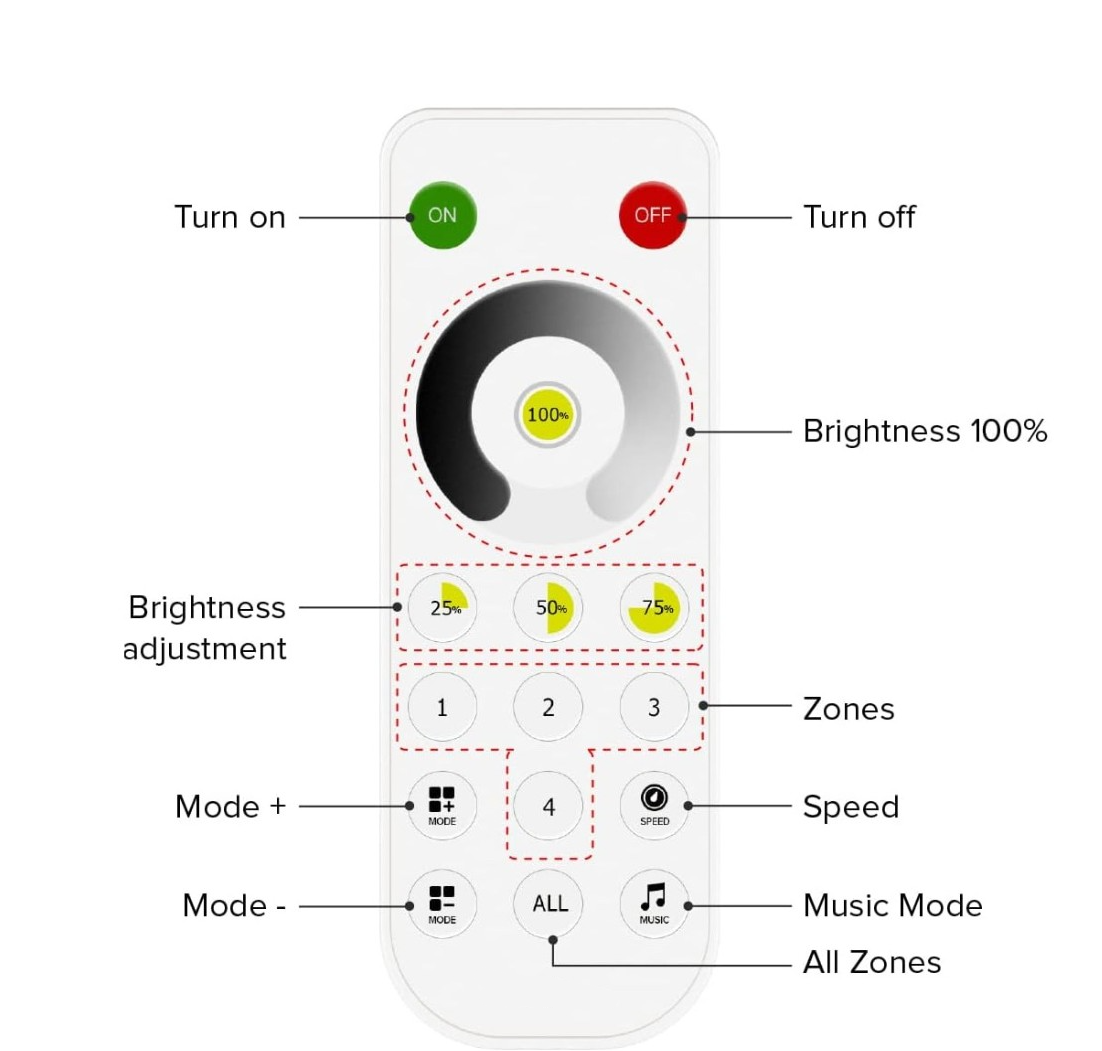

Key Features
Single-Colour Lighting Control – Designed for DIM applications
Multi-Zone Operation – Control up to 4 zones independently or together
Touch-Sensitive Brightness Ring – Smooth 1–100% dimming
Music Mode – Optional dynamic effects with sound interaction
Quick Setup – Simple RF pairing/unpairing within 20s
Modern Wall Panel Design – Sleek and intuitive interface
Reliable RF Signal – Stable 2.4GHz wireless transmission
Compact & Durable – Designed for long-term daily use
Applications
Residential Lighting – Bedrooms, living rooms, and kitchens with dimmable LED strips.
Commercial Interiors – Offices, hotels, and restaurants needing zone dimming.
Architectural Projects – Accent and ambient single-colour LED lighting.
Events & Exhibitions – Simple, multi-zone lighting control with wireless convenience.
