Wood Touch | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-WOOD |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 50mm |
| Cable Length | 1m |
| IP Rating | 20 |

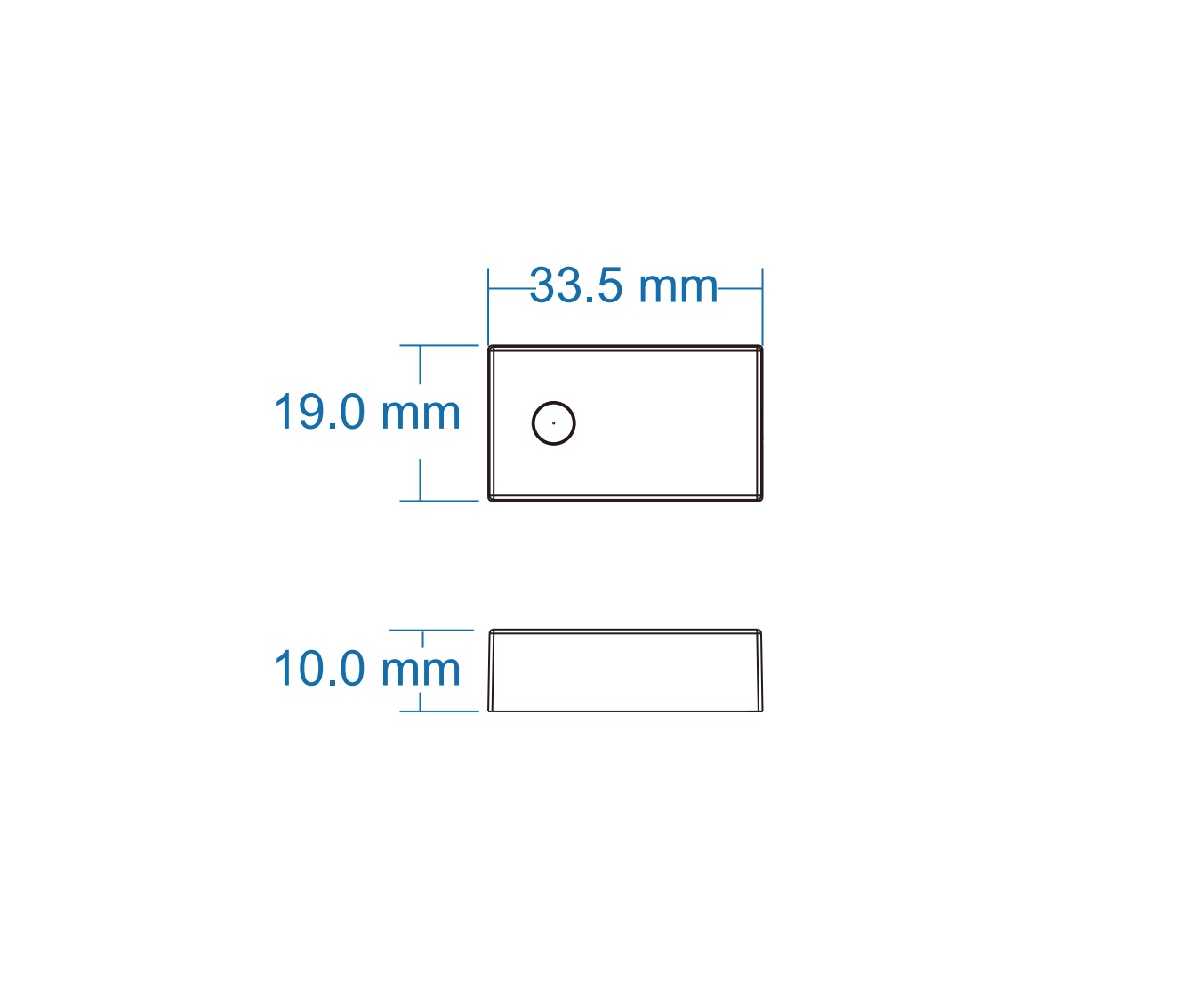

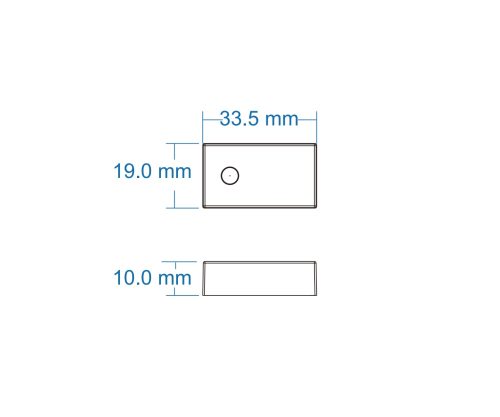

| Dimensions | L33.5 x W19 x H10mm |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |

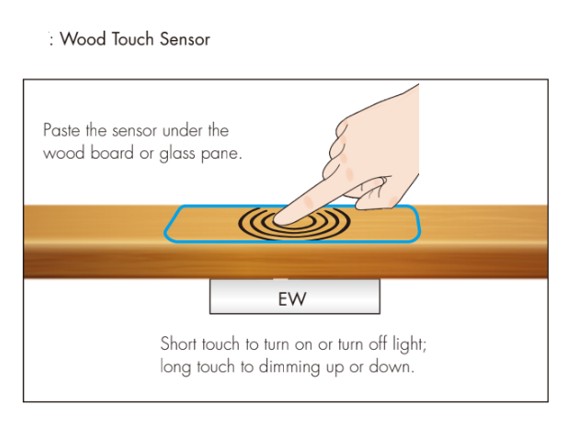

The SN-WOOD Wood Touch Sensor is a discreet, innovative control solution that allows users to switch and dim LED lights through wood, glass, or plastic surfaces. Simply tap or hold the sensing area to turn lights on/off or smoothly adjust brightness. With its slim, compact design, it integrates seamlessly into furniture, cabinets, and architectural elements, creating a modern, invisible interface for LED lighting control.

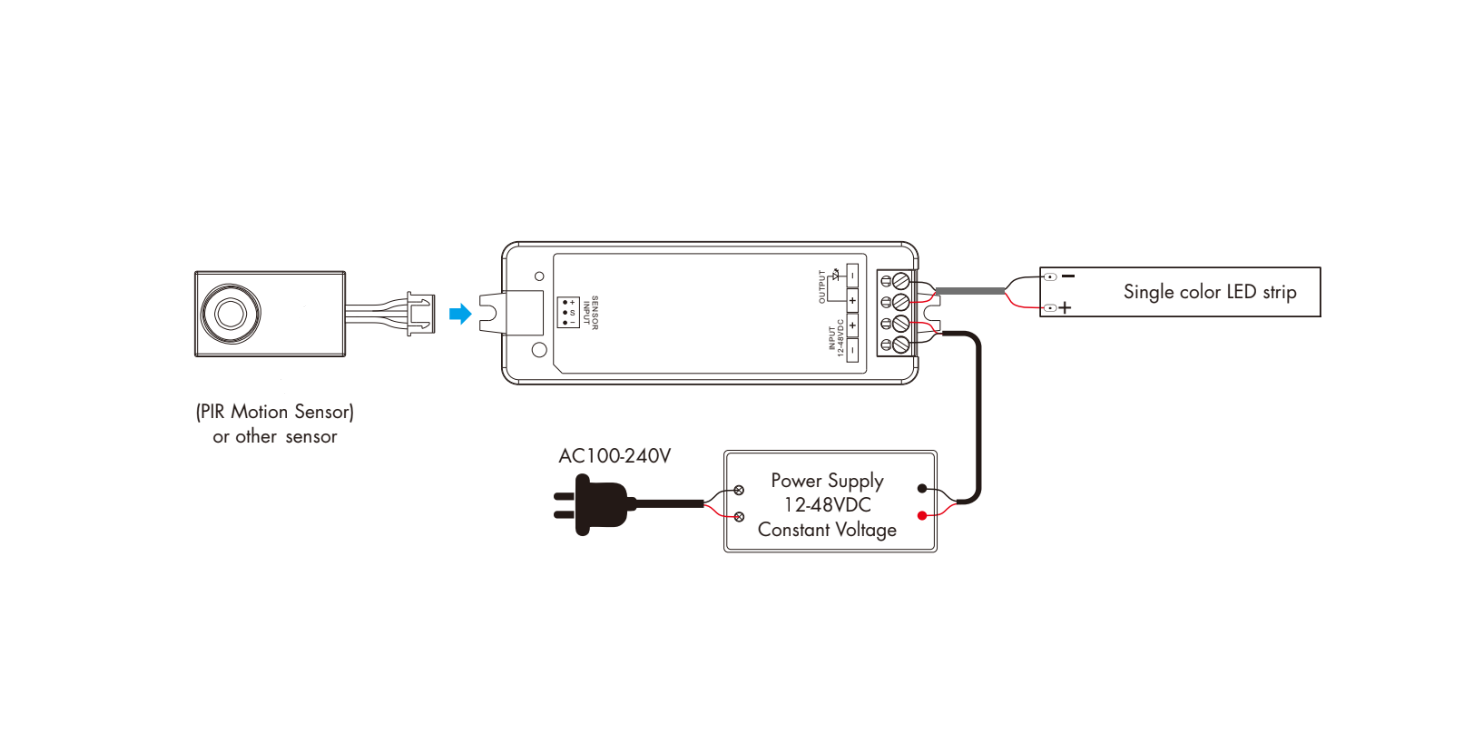

Powered by low-voltage 5VDC, the sensor outputs a 5V or PWM signal for direct connection to compatible LED controllers and dimmers. Offering 0–100% dimming with 2000Hz PWM frequency, it ensures flicker-free performance suitable for residential and commercial applications.
Key Features
2-in-1 Sensor & Remote – Hand sweep or door control operation in one device
3 Operating Modes – Dimmable sweep, non-dimmable sweep, or door mode
Wireless Control – 2.4GHz RF connection, up to 10m distance
Battery Powered – Long-lasting CR2450 coin cell, ultra-low standby current (<20uA)
Compact & Lightweight – 80×40×30mm, only 38g
Easy Mounting – Screw or adhesive back holder installation
LED Indicator – Provides mode and action confirmation
Safe & Certified – CE RED compliant, designed for low-voltage lighting systems
Applications
The SN-RM-DOOR sensor switch remote is ideal for:
Cabinets & Wardrobes – Automatic lighting when doors open or close.
Closets & Storage Spaces – Touch-free activation with a hand sweep.
Wine Cabinets & Displays – Elegant lighting control for presentations.
Residential Spaces – Flexible, wireless switch for modern LED setups.
Commercial Use – Retail shelves, showcases, and smart furniture lighting.
