240W DALI Dimmable LED Driver, 24v, IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-240-24 |
| Wattage | 240W |
| Voltage (DC) | 24v |
| Current (DC) | 10A |
| Length | 360mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220/240 AC |
| Input Current | 1.2A @ 230V |
| Inrush Current | 60A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 630g |
| Operating Temp | -20°C / 50°C |
| Warranty | 5 Years |
240W DALI Dimmable LED Driver – 24V, IP20 Rated
The 240W DALI dimmable LED driver is a powerful, professional-grade solution designed for large LED lighting systems that require reliable performance and advanced dimming control. Delivering a constant 24V DC output at up to 10A, it provides stable, flicker-free power for demanding commercial and residential installations.
Compatible with both DALI and 1–10V/0–10V dimming protocols, this driver integrates seamlessly into modern lighting networks, allowing smooth, precise brightness control across a wide range of applications. From retail and hospitality to offices and high-end residential projects, it ensures flexible and consistent lighting control.

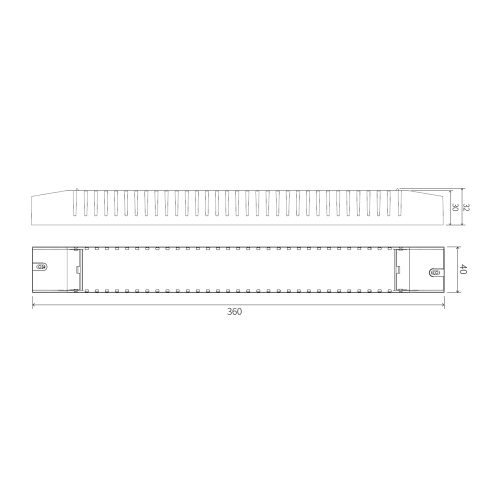

Built with a slim and durable profile (360mm x 40mm x 32mm) and weighing 630g, the unit is compact enough for straightforward installation yet robust enough for professional environments. Rated IP20, it is intended for indoor use and performs reliably across an operating range of -20°C to +50°C.
The driver supports 220–240V AC input, features a power factor above 0.95, and draws just 1.2A at 230V, ensuring energy efficiency. A 60A inrush current capacity provides additional protection during start-up, safeguarding connected systems.
Backed by a 5-year warranty, the 240W DALI dimmable LED driver is a dependable choice for large-scale projects requiring efficiency, control, and long-term reliability.
