Deep Surface 5mm LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-DS5 |
| Width | 7.7mm |
| Height | 9mm |
| Max LED Width | 5.7mm |
| Available Lengths | 1m, 2m |
| Colour Options | Silver |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) |

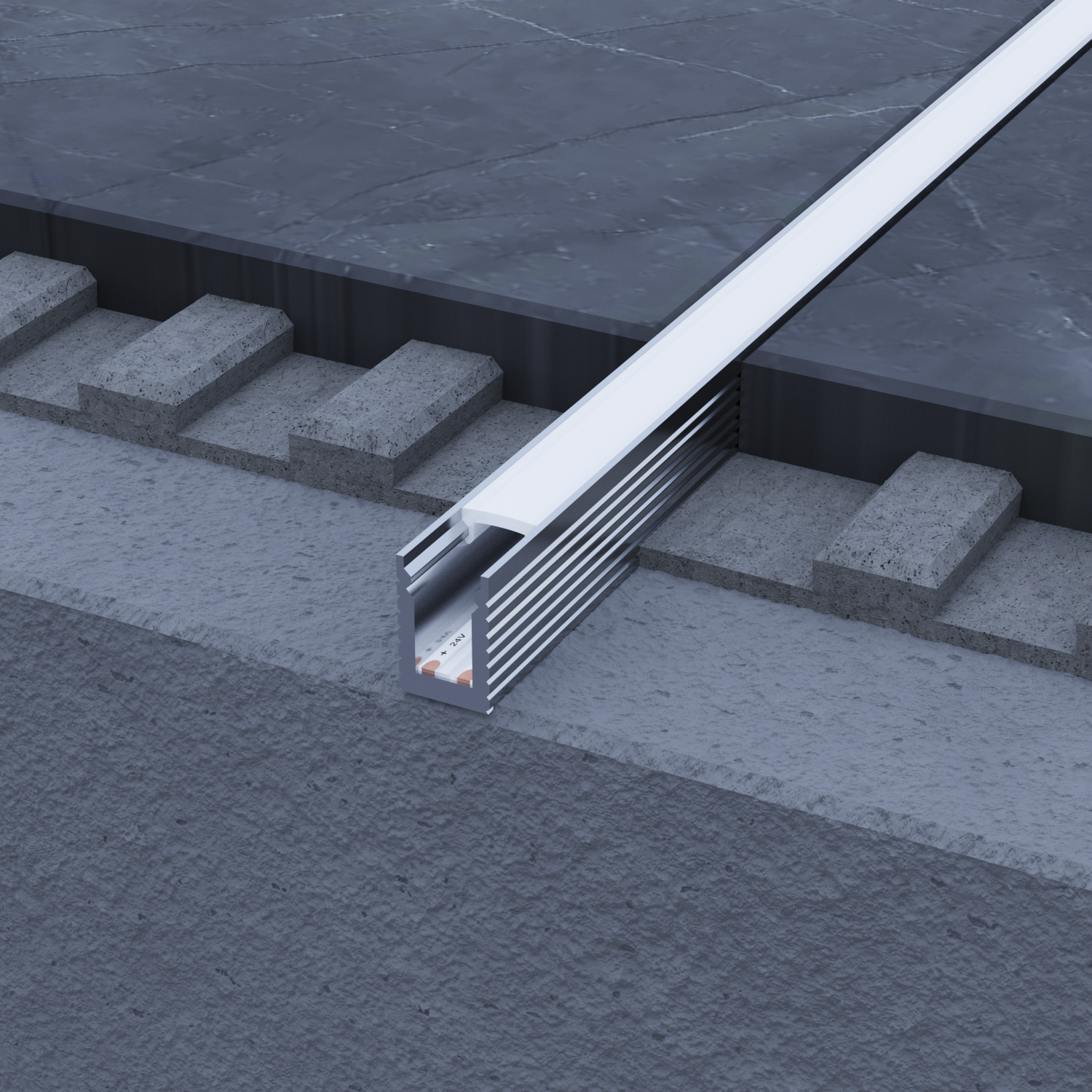

Deep Surface 5mm LED Profile – Aluminium, IP20 Rated

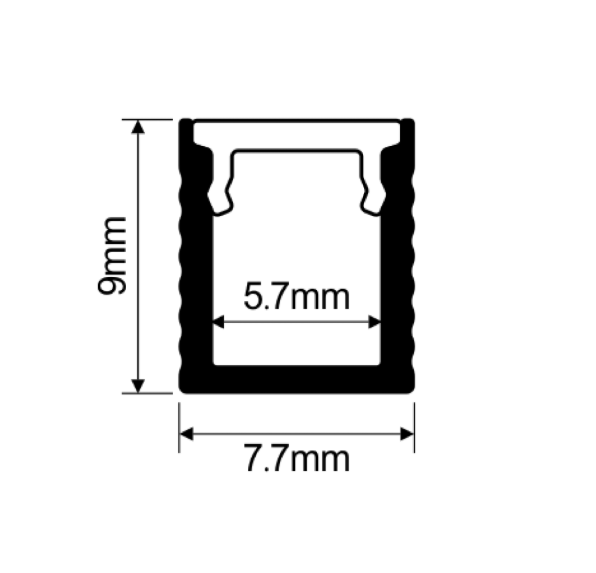

The Deep Surface 5mm LED profile is a slim aluminium housing designed for a professional and long-lasting finish to compact LED strip installations. Measuring just 7.7mm wide and 9mm high, it is perfectly suited for LED tape up to 5.7mm wide, making it an excellent choice for subtle, space-saving applications.
Available in 1m and 2m lengths, this profile is finished in sleek silver aluminium for a modern, clean look that complements contemporary interiors. Its deeper design improves diffusion, helping to reduce visible LED hotspots for smooth, even illumination.
The included opal lens cover (20% semi-diffused) softens the output, minimising glare while ensuring a balanced distribution of light, ideal for accent lighting, display cases, or decorative features.
Rated IP20, the Deep Surface 5mm LED profile is intended for indoor use only. It combines functionality and style, offering a neat, professional finish for small-scale LED lighting projects.

- Commercial Grade
- Ideal for internal use
- Aluminium (buffed silver) finish
- Semi Diffused Opal Lens
