Large Surface LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-LS |
| Width | 35mm |
| Height | 35mm |
| Max LED Width | 26mm |
| Available Lengths | 1m, 2m, 3m |
| Colour Options | Silver |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) |
Large Surface LED Profile – Aluminium, IP20 Rated

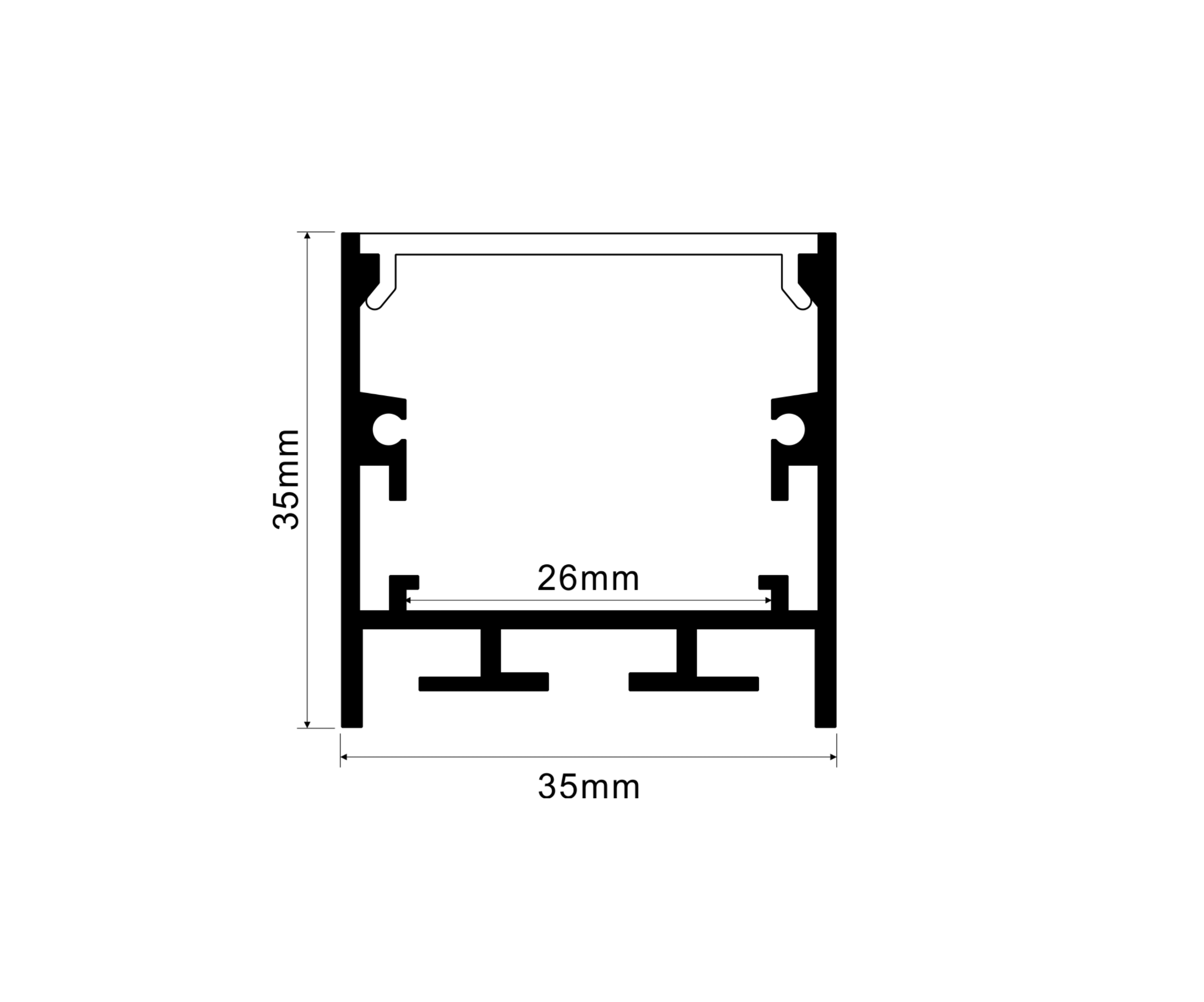

The Large Surface LED profile is a robust aluminium housing designed for high-output LED strip installations that require a clean, professional finish. With dimensions of 35mm wide and 35mm high, it can accommodate LED tape up to 26mm wide, making it ideal for powerful lighting applications.
Available in 1m, 2m, and 3m lengths, this profile is supplied in a sleek silver finish, ensuring it integrates seamlessly into both commercial and residential environments. Its larger structure allows for improved heat management and excellent light diffusion.
The included opal lens cover (20% semi-diffused) softens and evens out the light, reducing glare and eliminating hotspots for smooth, continuous illumination.

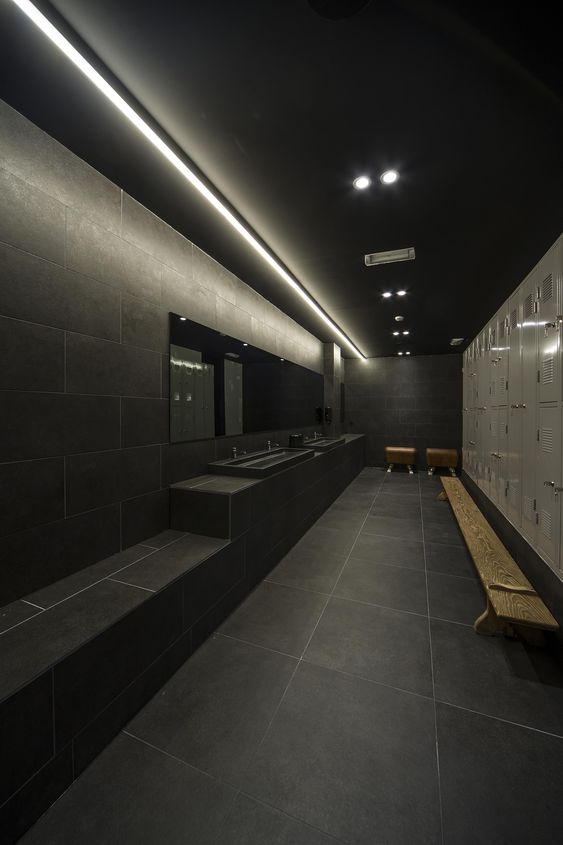

Rated IP20, the Large Surface LED profile is designed for indoor use only. It is the perfect solution for retail displays, offices, hospitality, and feature lighting projects where both performance and presentation are essential.
- Commercial Grade
- Ideal for internal use
- Aluminium (buffed silver) finish
- Semi Diffused Opal Lens
