Tile In/Step LED Profile
Commercial Grade LED Profile
Full Specification:
| Product Code | P-TI |
| Width | 15.2mm (35.2mm incl flange) |
| Height | 13mm |
| Max LED Width | 12.6mm |
| Available Lengths | 1m, 2m |
| Colour Options | Silver, White, Black |
| IP Rating | 20 |
| Lens Cover | Opal / Semi Diffused (20%) / Black |
Tile In/Step LED Profile – Aluminium, IP20 Rated

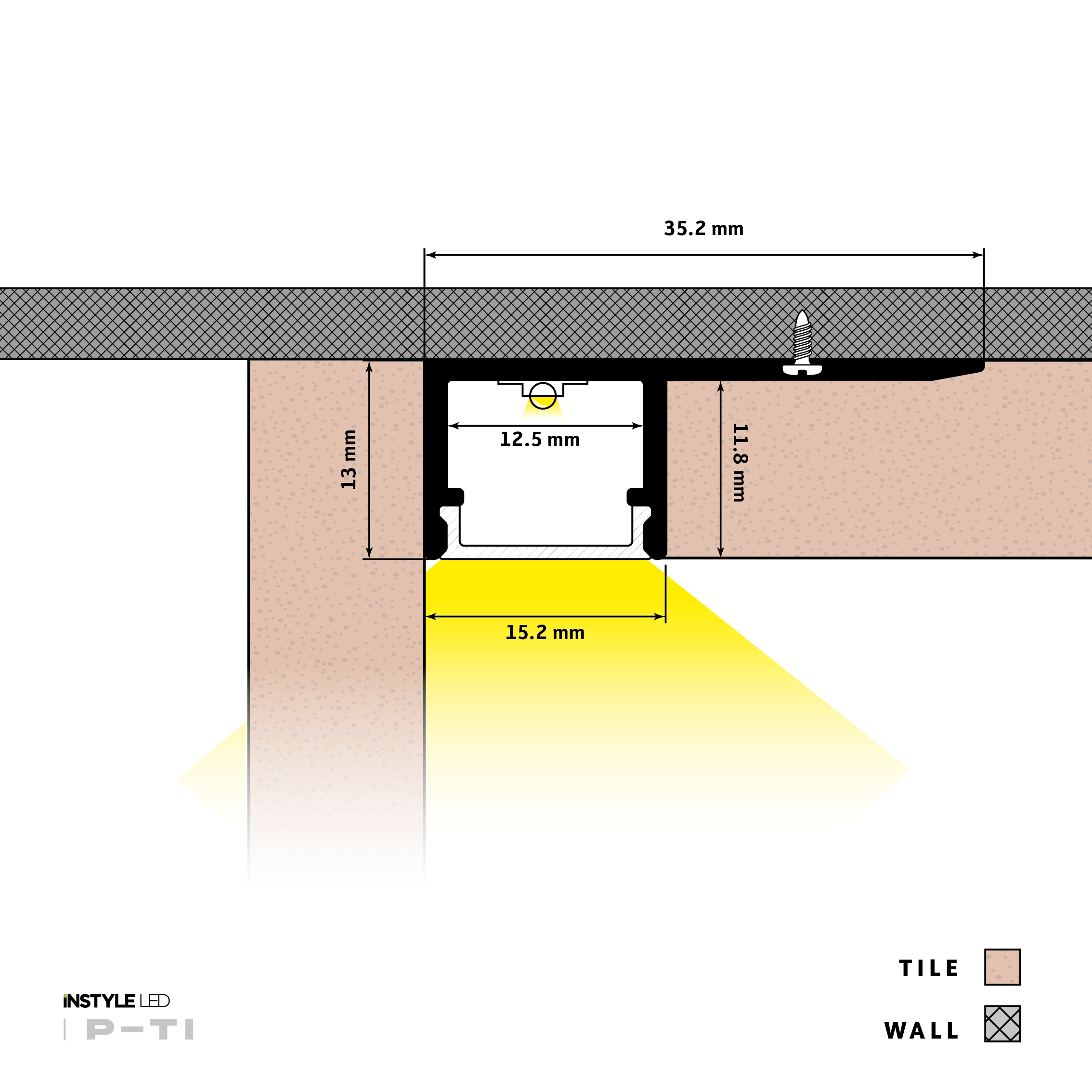

The INSTYLE LED Tile In/Step LED profile is a versatile aluminium housing designed for recessed installations in tiled surfaces or stair edging. Providing a neat and professional finish, it integrates seamlessly into floors, steps, and tiled walls, combining durability with stylish illumination.

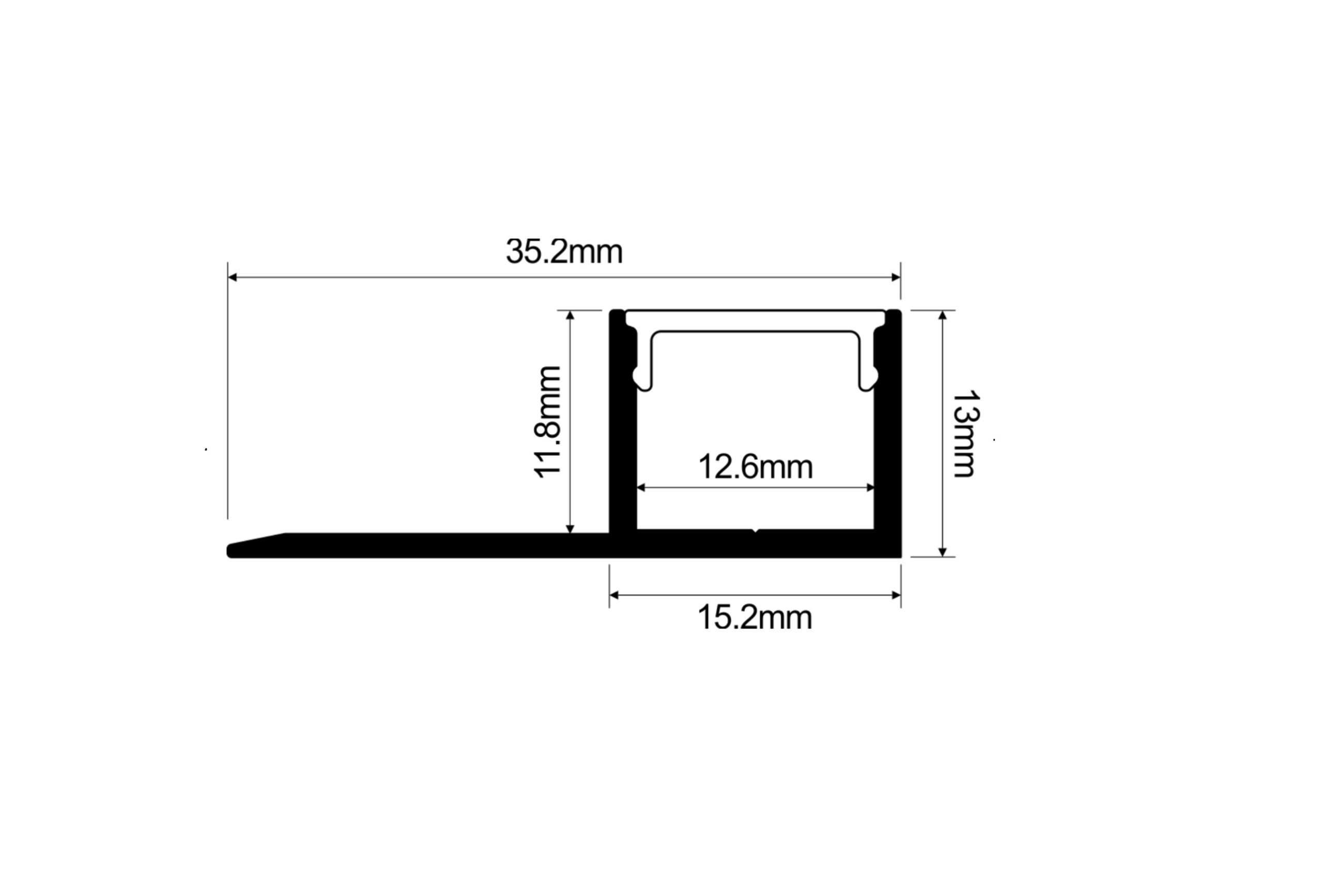

Measuring 15.2mm wide (35.2mm including flange) and 13mm high, this profile supports LED tape up to 12.6mm wide, making it suitable for a wide range of lighting applications. Available in 1m and 2m lengths, it comes in silver, white, or black finishes, ensuring a perfect match with any interior design.
The profile is supplied with a choice of opal (20% semi-diffused) lens for smooth, even light output or a black lens for a bold, modern effect. Both options reduce glare and eliminate hotspots.

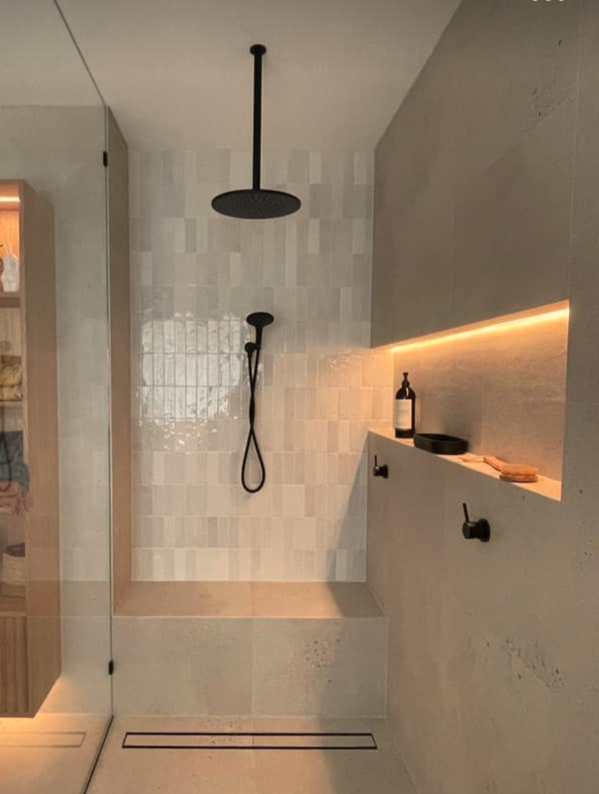

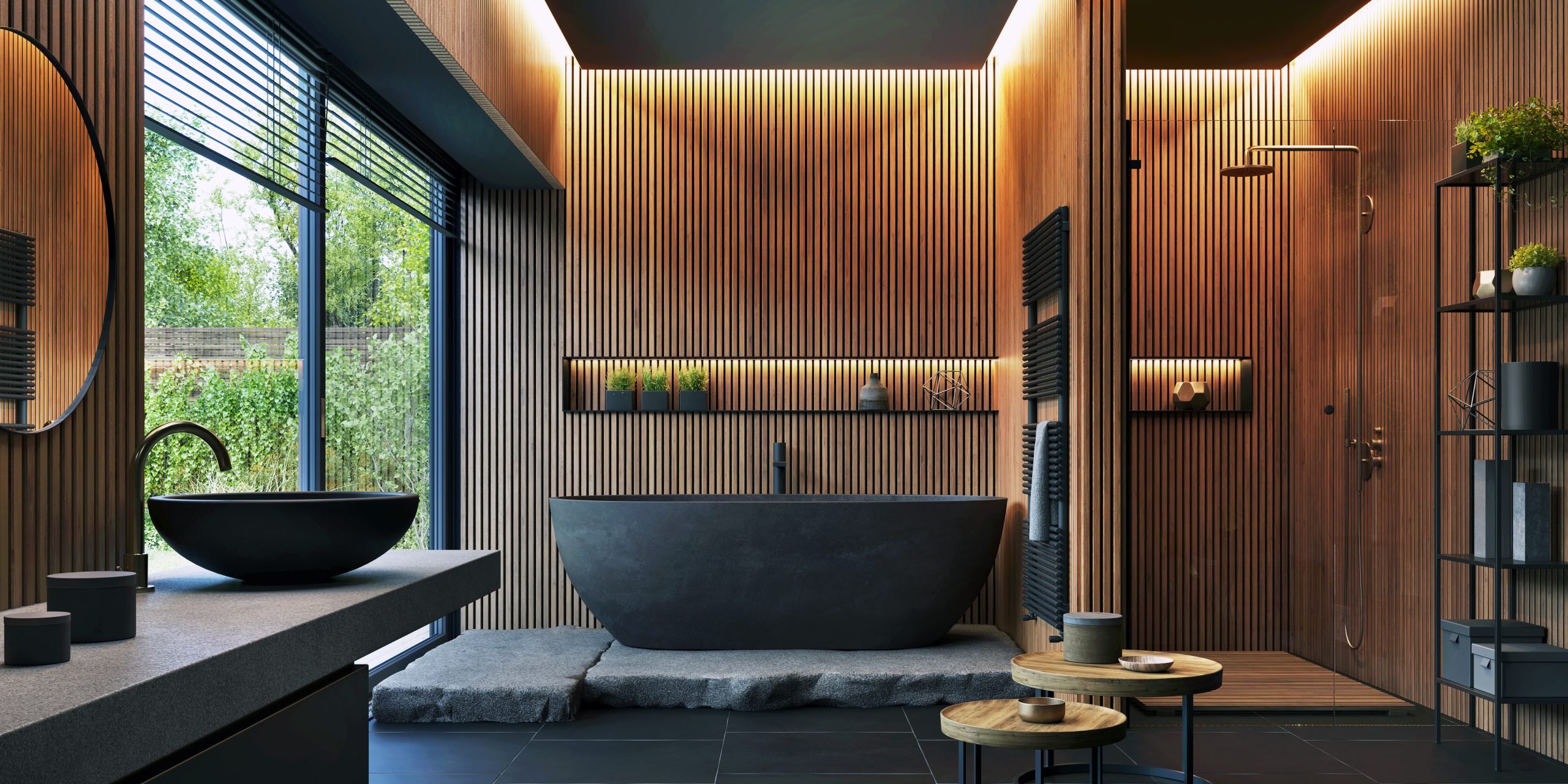

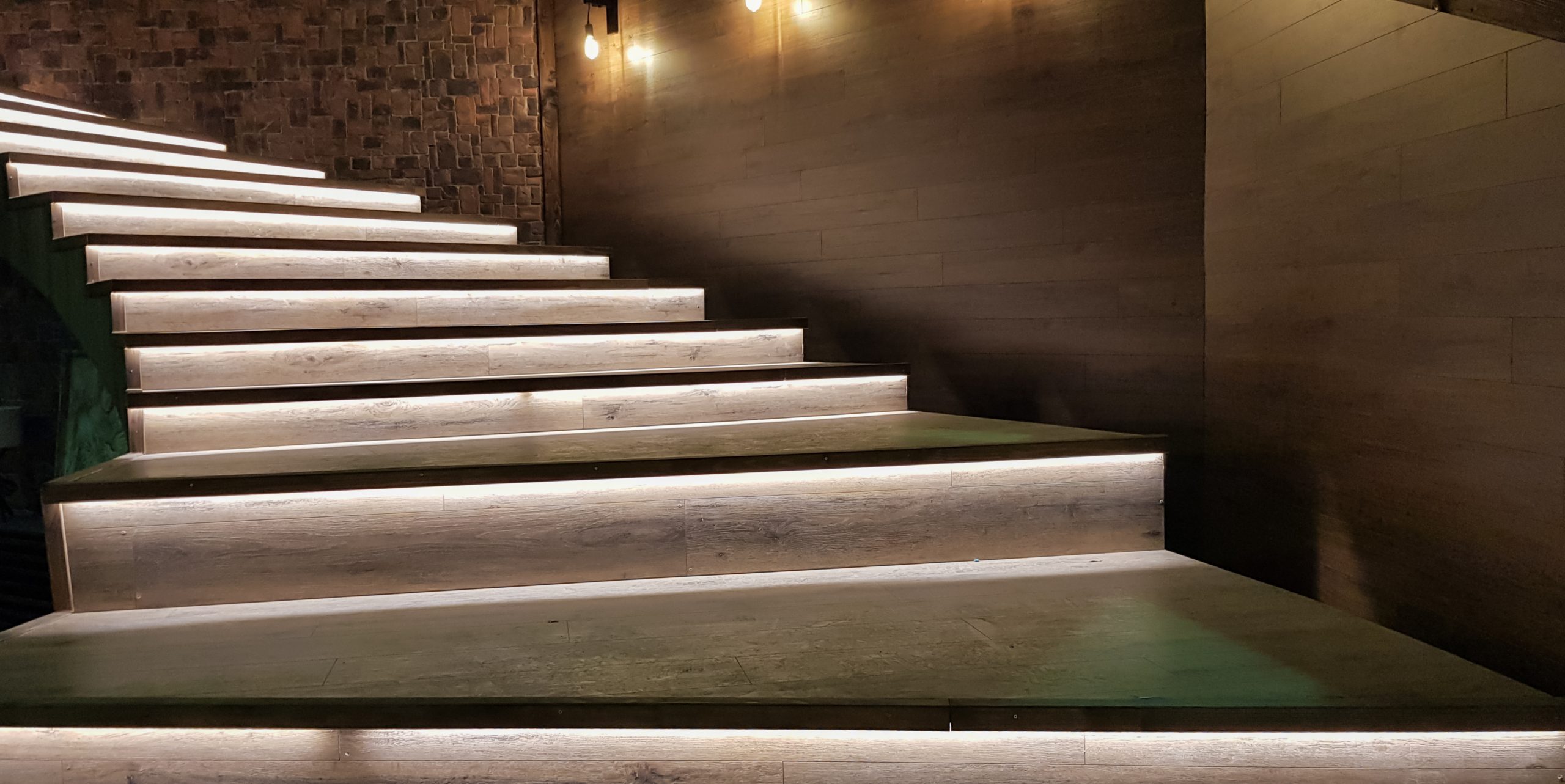

Rated IP20, the Tile In/Step LED profile is intended for indoor use only, making it ideal for stair lighting, tiled features, and architectural accents.
- Commercial Grade
- Colour: Silver, White, Black
- Maximum LED strip width: 12.6mm
- Waterproof Rating: IP20
